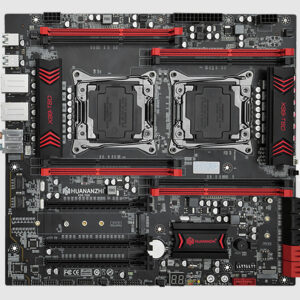

MAINBOARD X99 T8D DUAL NEW

-MAINBOARD : HUANANZHI X99-T8D

-PLATFORM : Intel® X99, 2 x LGA2011-3,
Non supports: Core™ Processor and Xeon® E5-16XX v3 series.

-MEMORY : 8 x DIMM, Max. 8 x 32GB, DDR3 1866/1600/1333 MHz,
Supports ECC or non-ECC Memory, 4 Channel Memory Architecture

-GRAPHIC : No display output port,
Supports NVIDIA® and AMD® Graphics Cards

-AUDIO : Realtek® ALC887 7.1-Channel, High Definition Audio CODEC

-LAN : Realtek® RTL8111H, 2 x 10/100/1000 Mbit/s LAN Controller(s)

-EXPANSION SLOTS : 3 x PCIe 3.0 x16

STORAGE : 1 x M.2 Socket 3, NVMe,
1 x M.2 Socket 3, SATA,
10 x SATA3.0 (6GB/s) port(s)

-INTERNAL I/O PORTS :

2 x USB 2.0 connector support additional 2 x USB 2.0
1 x USB 3.0 connector support additional 2 x USB 3.0
2 x CPU Fan connector(s) (1 x 4-pin)
4 x Chassis Fan connector(s)
1 x 24-pin EATX Power connector(s)
2 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x POST codes display LED

-BACK I/O PORTS :

2 x LAN (RJ45) port(s)
4 x USB 2.0
4 x USB 3.0
6 x Audio jack(s)

-FORM FACTOR : E-ATX Form Factor; 30cm x 32cm
